A magnetic door lock, also known as a maglock, is a type of locking device used to secure doors in various settings. It operates on the principle of electromagnetism and is commonly employed in commercial buildings, institutions, and high-security environments.

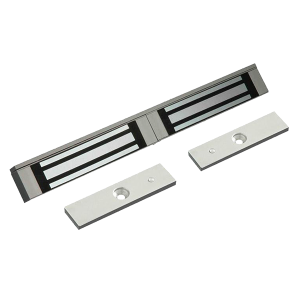

ES 230GSD
Double Door EM Lock are used on glass door, fireproof door and wooden door. Double Door EM Lock prevent unauthorized visitors from gaining entry to your home or business. Double Door EM Lock electromagnetic lock was designed specifically to keep double-doors securely closed.
| Feature |
|---|
| Green/red LED indication for lock status |
| Design with no Mechanical Bolt |
| Voltage and current spike protection PCB |
| Request-to-open, Auto-relock if no Action |
| Silent operation: no humming or buzzing |
ES 230GSD Catalogue
The magnetic door lock consists of two main components: an electromagnet and an armature plate. The electromagnet is typically mounted on the door frame, while the armature plate is affixed to the door itself. When power is applied to the electromagnet, it creates a magnetic field that attracts and holds the armature plate, effectively locking the door.
One of the key advantages of a magnetic door lock is its holding force. These locks can provide high levels of security, with holding forces ranging from several hundred to several thousand pounds. This makes them highly resistant to forced entry and enhances the overall physical security of the premises.
Magnetic door locks are known for their fail-safe operation. In the event of a power failure or emergency, the lock automatically releases, allowing for easy egress and ensuring the safety of individuals inside the building. This feature is particularly important for fire safety regulations and emergency evacuation procedures.
Installation and setup of magnetic door locks are generally straightforward. They can be installed on various types of doors, including wooden, metal, or glass doors. It is important to ensure that the door and frame are properly reinforced to withstand the holding force of the lock.
Magnetic door locks can also be integrated with access control systems, such as keypads, card readers, or biometric scanners. This allows for secure and convenient access management, as only authorized individuals with valid credentials can release the lock and gain entry.
